Harmar Combined Calculator
Vehicle Compatibility Calculator
Wondering which Harmar lifts are suitable with your vehicle and mobility device? Our compatibility calculator can help. Fill out your vehicle’s year, make and model, then specify your device. The compatibility calculator will do the rest!
Step 1 - Vehicle Information
Select your vehicle's year, make and model.
Step 2 - Chair/Scooter Information
Select your mobility device make and model below
Step 3 - Find Compatible Lifts
Click "Find Lifts" button below to search for compatible lifts. Your results will appear below.
Your Selections
,Compatible Lifts
Please see lift information below. Note: The Compatibility Calculator is intended to be used as a guide and does not include every conceivable application. Due to continuous updating by vehicle, chair and hitch manufacturers, Harmar recommends verifying compatibility with one of our representatives before placing an order.
No Results Found
No compatible lifts were found for your vehicle and device selections , please contact a Harmar dealer to identify the best solution for your vehicle .
Notes:
Loading compatible lifts
Outside
-
AL100- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting capacity:350 lb
-
Accommodates:Scooters
-
Installed Weight:83 lb
- Carries virtually all scooters up to 350 lb or 400 lb (for HD)
- Compatible with most minivans, SUVs, trucks, and vans
- Complete with fully powered lifting and folding when not in use
Options
Requirements
-
AL100-DE- Minivans
- SUVs
- Vans
-
Lifting Capacity:350 lb
-
Accommodates:Scooters
-
Installed weight:83 lb
- Carries virtually all three and four-wheel scooters
- Automatic hold-down foot
- No scooter modifications required
Options
Requirements
-
AL100HD- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting Capacity:400 lb
-
Accommodates:Scooters
-
Installed weight:84 lb
- Carries virtually all scooters
- Automatic hold-down foot
- No scooter modifications
Options
Requirements
-
AL160- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting Capacity:350 lb
-
Accommodates:Scooters up to 42" wheelbase
-
Installed Weight:74 lb
- Streamlined silhouette
- Fully-powered, hold-down foot secures scooter automatically
- Lightweight - just 74 lbs. installed
Options
Requirements
-
AL300- Minivans
- SUVs
- Trucks
- Vans
-
Lifting capacity:350 lb
-
Accommodates:Power wheelchairs
Scooters -
Installed weight:80 lb
- Carries virtually all scooters AND power chairs
- 4 - Self-tensioning Q'Straint retractors
- Stars -N- Stripes Aluminum Deck
Options
Requirements
-
AL300-FULL- Minivans
- SUVs
- Vans
-
Lifting capacity:350 lb
-
Accommodates:• Power wheelchairs
• Scooters -
Installed weight:73 lb
- Carries small scooters and powerchairs
- Multiple securement options including the adaptable hold-down foot (scooters only), hold-down arm (powerchairs only), and Ratchet Straps
- No scooter modifications required
Options
Requirements
-
AL300HD- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting Capacity:400 lbs
-
Accommodates:Power wheelchairs
Scooters -
Installed Weight:82 lb
- Carries virtually all scooters AND power chairs
- 4-Self-tensioning Q'Straint retractors
- No scooter or power chair modifications
Options
Requirements
-
AL301XL- Minivans
- SUVs
- Trucks
- Vans
-
Lifting capacity:350 lb
-
Accommodates:Larger power wheelchairs
Larger scooters -
Installed weight:100 lb
- Carries larger power scooters or power chairs with no modifications required.
- Extra large 36" x 39" aluminum deck/adjustable cradles extend up to 53" (Optional, no charge item)
- Capacity: 350 lbs.
Options
Requirements
-
AL301XLHD- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting Capacity:400 lb
-
Accommodates:Larger power wheelchairs
Larger scooters -
Installed Weight:102 lb
- Carries larger power scooters or power chairs with no modifications required.
- Self-tensioning, Q'Straint retractors/front and rear cradles
- Extra large 36" x39" aluminum deck/adjustable cradles extend up to 53" (optional, no charge item)
Options
Requirements
-
AL300RV- RV's
-
Lifting capacity:350 lb
-
Accommodates:Power wheelchairs
Scooters -
Installed weight:82 lb
- Engineered to handle the added stress from RVs
- Carries virtually all scooters AND power chairs
- 4 Self-tensioning Q'Straint retractors
Options
Requirements
-
AL500- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting capacity:350 lb
-
Accommodates:Power wheelchairs
-
Installed weight:75 lb
- Carries virtually all powerchairs
- 4 Self-tensioning, Q’Straint retractors
- Stars -N- Stripes Aluminum Deck
Options
Requirements
-
AL500HD- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting capacity:400 lb
-
Accommodates:Power wheelchairs
-
Platform Size:26" x 39"
- Carries virtually all power chairs
- 4 Self-tensioning, Q'Straint retractors
- No powerchair modifications
Options
Requirements
-
AL560- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting capacity:350 lb
-
Accommodates:Power wheelchairs
-
Installed weight:89 lb
- Lifts/transports a variety of rear, mid, and front wheel drive powerchairs up to 350 lb
- Platform size of 26.25” x 38.5” with adjustable platform
- Secure mobility device with padded hold-down arm and wheel cradles
Options
Requirements
-
AL560XL- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting capacity:350 lb
-
Accommodates:Power wheelchairs
-
Installed weight:101 lb
- Lifts/transports a variety of rear, mid, and front wheel drive powerchairs up to 350 lb
- Platform size of 30.75” x 38.5” with adjustable platform
- Secure mobility device with padded hold-down arm and wheel cradles
Options
Requirements
-
AL580- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting Capacity:350lb
-
Accommodates:Mid-wheel drive power wheel¬chairs with 10" drive wheels
-
Installed Weight:63 lb
- Padded hold down arm conveniently secures power wheelchair
- No power wheelchair modifications required
- Lift folds automatically when unoccupied
Options
Requirements
-
AL580-HDX- SUVs
- Trucks
-
Lifting Capacity:450 lb
-
Accommodates:Mid-wheel drive power wheelchairs with 10" - 14" drive wheels
-
Installed Weight:92 lb
- 4 Q'Straint Retractors plus Padded Hold-Down Arm secure Power Chair
- 27" (68.6 cm) wide usable space
- Supports Heavy Mid-Wheel Power Chairs
Options
Requirements
-
AL580XL- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting Capacity:350 lb
-
Accommodates:Mid-wheel drive power wheel¬chairs with 14" drive wheels
-
Installed Weight:63 lb
- Padded hold-down arm conveniently secures power wheelchairs
- No power wheelchair modifications required
- Lift folds automatically when unoccupied
Options
Requirements
-
AL003- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting Capacity:100 lb
-
Accommodates:Manual folding wheelchairs
-
Installed Weight:25 lb
- Carries manual wheelchairs
- Tilting joint for roll-on ease
- Unique, adjustable hold-down arm
Options
Requirements
-
AL010- Cars
- Minivans
-
Lifting Capacity:135 lb
-
Accommodates:Scooters
-
Installed Weight:71 lb
- Carries virtually all 3- and 4-wheel micro scooters and power chairs
- 4 secure tie-downs and rear wheel cradle
- No scooter or chair modifications required
Options
Requirements
-
AL015- Cars
- SUVs
- Trucks
- Vans
-
Lifting Capacity:150 lbs
-
Accommodates:Smaller scooters up to 36" wheelbase
-
Installed Weight:65 lb (3-wheel cradle standard)
70 lb (4-wheel cradle option)
- Simple, lightweight design with greater visibility
- Class I hitch capable
- Fully automatic hold-down foot with rear wheel cradle
Options
Requirements
-
AL030- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting Capacity:100 lb
-
Accommodates:Manual folding wheelchairs
-
Installed Weight:49 lb
- Carries manual wheelchairs
- One-switch operation
- Unique, adjustable hold down arm
Options
Requirements
-
AL050
- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting Capacity:135 lb
-
Accommodates:Manual wheelchairs Small power wheelchairs
-
Installed Weight:67 lb
- Carries virtually all travel scooters and micro power chairs
- 4 secure tie-downs
- No power chair modifications
Options
Requirements
-
AL001- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting Capacity:500 lb
-
Accommodates:Manual wheelchairs Power wheelchairs Scooters
-
Installed Weight:84 lb
- Oversized platform carries virtually all scooters and powerchairs
- Fully-manual outside carrier
- No scooter or chair modifications necessary
Options
Requirements
Inside
-
AL215- Minivans
- SUVs
- Trucks
- Vans
-
Lifting capacity:250 lbs
-
Accommodates:Manual wheelchairs
Power wheelchairs
Scooters -
Installed Weight:42 lbs
- Light duty, economical yet effective solution
- Manual rotation with mechanical stop
- Extremely adjustable base and arm height with adjustable boom strap
- Standard installation is for Passenger side. For Driver side option the DS01 must be included.
Options
Requirements
-
AL225- Minivans
- SUVs
- Trucks
- Vans
-
Lifting capacity:250 lbs
-
Accommodates:Manual wheelchairs
Power wheelchairs
Scooters -
Installed Weight:55 lbs
- Dual axis for powered rotation and lifting
- Adjustable arm height
- Weather-resistant remote control (wireless option available)
Options
Requirements
-
AL425HD- SUVs
- Trucks
- Vans
-
Lifting capacity:450 lbs
-
Accommodates:Manual wheelchairs
Power wheelchairs
Scooters -
Installed weight:70 lbs
- 30” of headroom required
- Offset post allows safe unloading on vehicle’s side
- Can be installed on either passenger or drive side
Options
Requirements
-
AL425- Minivans
- SUVs
- Trucks
- Vans
-
Lifting capacity:400 lbs
-
Accommodates:Manual wheelchairs
Power wheelchairs
Scooters -
Installed Weight:66 lbs
- 30” of headroom required
- Offset post allows safe unloading on vehicle’s side
- Can be installed on either passenger or drive side
Options
Requirements
-
AL435T- Trucks
-
Lifting capacity:400 lbs
-
Installed weight:81 lbs
-
Arm Length:31" - 42"
- Folding arm
- Unique offset arm with power extension
- Reaches 43” to curb or over 24” tailgate
Options
Requirements
-
AL435- Minivans
- SUVs
- Trucks
- Vans
-
Lifting Capacity:400 lbs
-
Accommodates :Power wheelchairs Scooters
Manual wheelchairs -
Installed Weight:76 lbs
- Fully powered lifting, boom extension, and rotation
- Simplified base fits in a smaller footprint
- Passenger or driver side installation
Options
Requirements
-
AL835- Trucks
-
Lifting Capacity:350 lb
-
Installed Weight:116 lb
-
Adjustable Length:28.75" - 46.5"
- Lifts and secures your mobility device close to the driver or passenger side of your truck, depending on the install location
- Complete with fully powered lifting and rotation
- Offset base mounting is great for fitting tightly into your truck’s sidewall and fender walls
Options
Requirements
-
AL825CC- Trucks
-
Accommodates:Manual wheelchair, scooters, and powerchairs
-
Lifting Capacity:225 lb (102 kg)
-
Installed Weight:121 lb (54 kg)
- Hoists and loads mobility devices close to driver or passenger side door, depending on the lift install location
- Fully powered lifting and rotation
- In-cab remote control extension included
Options
Requirements
-
AL825
- Trucks
-
Lifting Capacity:210 lb
-
Installed Weight:116 lb
-
Arm Length:28.75" - 46.5"
- Lifts and secures your mobility device close to the driver or passenger side of your truck, depending on the install location
- Complete with fully powered lifting and rotation
- Offset base mounting is great for fitting tightly into your truck’s sidewall and fender walls
Options
Requirements
-
AL815CC- Trucks
-
Accommodates:Manual wheelchair, scooters, and powerchairs
-
Lifting Capacity:135 lb (61 kg)
-
Installed Weight:121 lb (55 kg)
- Twice the speed of the AL825CC
- Longer arm for crew cabs (reduced capacity)
- Delivers chair close to driver or passenger side door
Options
Requirements
-
AL065- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Accommodates:Manual wheelchairs, Small powerchairs, Scooters
-
Lifting capacity:200 lb
-
Installed Weight:63 lb
- Lightweight and compact
- Heaviest component is 23 lb
- Powered lifting with manual rotation
Options
Requirements
-
AL055- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting capacity:200 lb
-
Accommodates:Manual Wheelchairs, small powerchairs, and scooters
-
Installed Weight:40 lb
- Lightweight and compact
- Heaviest component is 23 lb
- Small enough to mount in the trunk or cargo area
Options
Requirements
Hybrid
-
AL6000- Minivans
- SUVs
- Vans
-
Lifting Capacity:350 lb
-
Accommodates:Power wheelchairs
Scooters -
Installed weight:160 lb
- Carries virtually all standard power chairs and scooters
- Allows continued use of second row seating; no drilling required in most vehicles
- Remote hand control
Options
Requirements
-
AL690- Minivans
-
Lifting Capacity:275 lb
-
Accommodates:Power wheelchairs, Manual Wheelchairs, Scooters
-
Installed Weight:186 lb
- Carries most standard power chairs and shorter scooters
- Weatherproof, remote hand control (wireless option available)
- No drilling required in most vehicles; connects to existing 2nd row seat hardware
Options
Requirements
Best Match
Not sure which compatible lift works best for your application? Answer the questions below and Best Match will narrow down your list of compatible lifts.
Would you prefer your lift inside or outside of your car?
Harmar Lifts can use automatic methods to secure your mobility device OR they can use straps that are manually operated. Do you prefer Manual Straps or an Automatic Hold-down device?
Vehicle Lifts can fold Manually (or semi-powered) or they can fold Automatically. Exterior lifts need to be folded when there is no scooter or power-char on the lift. Manual folding can offer economic advantage. Do you prefer a Manual or Automatic folding method?
There are many options for how your mobility device sits on the lift. Please select the option that best suits your needs.
Do you prefer a vehicle lift that offers a manual folding ramp with no power functions?
Do you prefer a vehicle lift that offers a completely hands-free option to secure the power wheelchair? (Choosing the hands-free option requires a special mounting plate to be installed onto the power wheelchair)
Do you also transport a scooter with your vehicle?
Are you able to walk from the rear of the vehicle to driver or passenger door?
Do you prefer a lift that deploys or retracts from the vehicle faster or a lift with an faster way to secure your power wheelchair or scooter?
Do you prefer a platform vehicle lift that "eliminates" the third row seating/cargo area or a crane-style lift which may "limit" seating when the mobility device is being transported
Your Best Match Results
Best Match starts with a list of all your compatible lifts. As you answer questions, the list of compatible lifts becomes smaller.
Outside
-
AL100
- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting capacity:350 lb
-
Accommodates:Scooters
-
Installed Weight:83 lb
- Carries virtually all scooters up to 350 lb or 400 lb (for HD)
- Compatible with most minivans, SUVs, trucks, and vans
- Complete with fully powered lifting and folding when not in use
Options
Requirements
-
AL100-DE
- Minivans
- SUVs
- Vans
-
Lifting Capacity:350 lb
-
Accommodates:Scooters
-
Installed weight:83 lb
- Carries virtually all three and four-wheel scooters
- Automatic hold-down foot
- No scooter modifications required
Options
Requirements
-
AL100HD
- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting Capacity:400 lb
-
Accommodates:Scooters
-
Installed weight:84 lb
- Carries virtually all scooters
- Automatic hold-down foot
- No scooter modifications
Options
Requirements
-
AL160
- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting Capacity:350 lb
-
Accommodates:Scooters up to 42" wheelbase
-
Installed Weight:74 lb
- Streamlined silhouette
- Fully-powered, hold-down foot secures scooter automatically
- Lightweight - just 74 lbs. installed
Options
Requirements
-
AL300
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting capacity:350 lb
-
Accommodates:Power wheelchairs
Scooters -
Installed weight:80 lb
- Carries virtually all scooters AND power chairs
- 4 - Self-tensioning Q'Straint retractors
- Stars -N- Stripes Aluminum Deck
Options
Requirements
-
AL300-FULL
- Minivans
- SUVs
- Vans
-
Lifting capacity:350 lb
-
Accommodates:• Power wheelchairs
• Scooters -
Installed weight:73 lb
- Carries small scooters and powerchairs
- Multiple securement options including the adaptable hold-down foot (scooters only), hold-down arm (powerchairs only), and Ratchet Straps
- No scooter modifications required
Options
Requirements
-
AL300HD
- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting Capacity:400 lbs
-
Accommodates:Power wheelchairs
Scooters -
Installed Weight:82 lb
- Carries virtually all scooters AND power chairs
- 4-Self-tensioning Q'Straint retractors
- No scooter or power chair modifications
Options
Requirements
-
AL301XL
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting capacity:350 lb
-
Accommodates:Larger power wheelchairs
Larger scooters -
Installed weight:100 lb
- Carries larger power scooters or power chairs with no modifications required.
- Extra large 36" x 39" aluminum deck/adjustable cradles extend up to 53" (Optional, no charge item)
- Capacity: 350 lbs.
Options
Requirements
-
AL301XLHD
- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting Capacity:400 lb
-
Accommodates:Larger power wheelchairs
Larger scooters -
Installed Weight:102 lb
- Carries larger power scooters or power chairs with no modifications required.
- Self-tensioning, Q'Straint retractors/front and rear cradles
- Extra large 36" x39" aluminum deck/adjustable cradles extend up to 53" (optional, no charge item)
Options
Requirements
-
AL300RV
- RV's
-
Lifting capacity:350 lb
-
Accommodates:Power wheelchairs
Scooters -
Installed weight:82 lb
- Engineered to handle the added stress from RVs
- Carries virtually all scooters AND power chairs
- 4 Self-tensioning Q'Straint retractors
Options
Requirements
-
AL500
- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting capacity:350 lb
-
Accommodates:Power wheelchairs
-
Installed weight:75 lb
- Carries virtually all powerchairs
- 4 Self-tensioning, Q’Straint retractors
- Stars -N- Stripes Aluminum Deck
Options
Requirements
-
AL500HD
- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting capacity:400 lb
-
Accommodates:Power wheelchairs
-
Platform Size:26" x 39"
- Carries virtually all power chairs
- 4 Self-tensioning, Q'Straint retractors
- No powerchair modifications
Options
Requirements
-
AL560
- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting capacity:350 lb
-
Accommodates:Power wheelchairs
-
Installed weight:89 lb
- Lifts/transports a variety of rear, mid, and front wheel drive powerchairs up to 350 lb
- Platform size of 26.25” x 38.5” with adjustable platform
- Secure mobility device with padded hold-down arm and wheel cradles
Options
Requirements
-
AL560XL
- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting capacity:350 lb
-
Accommodates:Power wheelchairs
-
Installed weight:101 lb
- Lifts/transports a variety of rear, mid, and front wheel drive powerchairs up to 350 lb
- Platform size of 30.75” x 38.5” with adjustable platform
- Secure mobility device with padded hold-down arm and wheel cradles
Options
Requirements
-
AL580
- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting Capacity:350lb
-
Accommodates:Mid-wheel drive power wheel¬chairs with 10" drive wheels
-
Installed Weight:63 lb
- Padded hold down arm conveniently secures power wheelchair
- No power wheelchair modifications required
- Lift folds automatically when unoccupied
Options
Requirements
-
AL580-HDX
- SUVs
- Trucks
-
Lifting Capacity:450 lb
-
Accommodates:Mid-wheel drive power wheelchairs with 10" - 14" drive wheels
-
Installed Weight:92 lb
- 4 Q'Straint Retractors plus Padded Hold-Down Arm secure Power Chair
- 27" (68.6 cm) wide usable space
- Supports Heavy Mid-Wheel Power Chairs
Options
Requirements
-
AL580XL
- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting Capacity:350 lb
-
Accommodates:Mid-wheel drive power wheel¬chairs with 14" drive wheels
-
Installed Weight:63 lb
- Padded hold-down arm conveniently secures power wheelchairs
- No power wheelchair modifications required
- Lift folds automatically when unoccupied
Options
Requirements
-
AL003
- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting Capacity:100 lb
-
Accommodates:Manual folding wheelchairs
-
Installed Weight:25 lb
- Carries manual wheelchairs
- Tilting joint for roll-on ease
- Unique, adjustable hold-down arm
Options
Requirements
-
AL010
- Cars
- Minivans
-
Lifting Capacity:135 lb
-
Accommodates:Scooters
-
Installed Weight:71 lb
- Carries virtually all 3- and 4-wheel micro scooters and power chairs
- 4 secure tie-downs and rear wheel cradle
- No scooter or chair modifications required
Options
Requirements
-
AL015
- Cars
- SUVs
- Trucks
- Vans
-
Lifting Capacity:150 lbs
-
Accommodates:Smaller scooters up to 36" wheelbase
-
Installed Weight:65 lb (3-wheel cradle standard)
70 lb (4-wheel cradle option)
- Simple, lightweight design with greater visibility
- Class I hitch capable
- Fully automatic hold-down foot with rear wheel cradle
Options
Requirements
-
AL030
- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting Capacity:100 lb
-
Accommodates:Manual folding wheelchairs
-
Installed Weight:49 lb
- Carries manual wheelchairs
- One-switch operation
- Unique, adjustable hold down arm
Options
Requirements
-
AL050
- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting Capacity:135 lb
-
Accommodates:Manual wheelchairs Small power wheelchairs
-
Installed Weight:67 lb
- Carries virtually all travel scooters and micro power chairs
- 4 secure tie-downs
- No power chair modifications
Options
Requirements
-
AL001
- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting Capacity:500 lb
-
Accommodates:Manual wheelchairs Power wheelchairs Scooters
-
Installed Weight:84 lb
- Oversized platform carries virtually all scooters and powerchairs
- Fully-manual outside carrier
- No scooter or chair modifications necessary
Options
Requirements
Inside
-
AL215
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting capacity:250 lbs
-
Accommodates:Manual wheelchairs
Power wheelchairs
Scooters -
Installed Weight:42 lbs
- Light duty, economical yet effective solution
- Manual rotation with mechanical stop
- Extremely adjustable base and arm height with adjustable boom strap
- Standard installation is for Passenger side. For Driver side option the DS01 must be included.
Options
Requirements
-
AL225
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting capacity:250 lbs
-
Accommodates:Manual wheelchairs
Power wheelchairs
Scooters -
Installed Weight:55 lbs
- Dual axis for powered rotation and lifting
- Adjustable arm height
- Weather-resistant remote control (wireless option available)
Options
Requirements
-
AL425HD
- SUVs
- Trucks
- Vans
-
Lifting capacity:450 lbs
-
Accommodates:Manual wheelchairs
Power wheelchairs
Scooters -
Installed weight:70 lbs
- 30” of headroom required
- Offset post allows safe unloading on vehicle’s side
- Can be installed on either passenger or drive side
Options
Requirements
-
AL425
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting capacity:400 lbs
-
Accommodates:Manual wheelchairs
Power wheelchairs
Scooters -
Installed Weight:66 lbs
- 30” of headroom required
- Offset post allows safe unloading on vehicle’s side
- Can be installed on either passenger or drive side
Options
Requirements
-
AL435T
- Trucks
-
Lifting capacity:400 lbs
-
Installed weight:81 lbs
-
Arm Length:31" - 42"
- Folding arm
- Unique offset arm with power extension
- Reaches 43” to curb or over 24” tailgate
Options
Requirements
-
AL435
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting Capacity:400 lbs
-
Accommodates :Power wheelchairs Scooters
Manual wheelchairs -
Installed Weight:76 lbs
- Fully powered lifting, boom extension, and rotation
- Simplified base fits in a smaller footprint
- Passenger or driver side installation
Options
Requirements
-
AL835
- Trucks
-
Lifting Capacity:350 lb
-
Installed Weight:116 lb
-
Adjustable Length:28.75" - 46.5"
- Lifts and secures your mobility device close to the driver or passenger side of your truck, depending on the install location
- Complete with fully powered lifting and rotation
- Offset base mounting is great for fitting tightly into your truck’s sidewall and fender walls
Options
Requirements
-
AL825CC
- Trucks
-
Accommodates:Manual wheelchair, scooters, and powerchairs
-
Lifting Capacity:225 lb (102 kg)
-
Installed Weight:121 lb (54 kg)
- Hoists and loads mobility devices close to driver or passenger side door, depending on the lift install location
- Fully powered lifting and rotation
- In-cab remote control extension included
Options
Requirements
-
AL825
- Trucks
-
Lifting Capacity:210 lb
-
Installed Weight:116 lb
-
Arm Length:28.75" - 46.5"
- Lifts and secures your mobility device close to the driver or passenger side of your truck, depending on the install location
- Complete with fully powered lifting and rotation
- Offset base mounting is great for fitting tightly into your truck’s sidewall and fender walls
Options
Requirements
-
AL815CC
- Trucks
-
Accommodates:Manual wheelchair, scooters, and powerchairs
-
Lifting Capacity:135 lb (61 kg)
-
Installed Weight:121 lb (55 kg)
- Twice the speed of the AL825CC
- Longer arm for crew cabs (reduced capacity)
- Delivers chair close to driver or passenger side door
Options
Requirements
-
AL065
- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Accommodates:Manual wheelchairs, Small powerchairs, Scooters
-
Lifting capacity:200 lb
-
Installed Weight:63 lb
- Lightweight and compact
- Heaviest component is 23 lb
- Powered lifting with manual rotation
Options
Requirements
-
AL055
- Cars
- Minivans
- SUVs
- Trucks
- Vans
-
Lifting capacity:200 lb
-
Accommodates:Manual Wheelchairs, small powerchairs, and scooters
-
Installed Weight:40 lb
- Lightweight and compact
- Heaviest component is 23 lb
- Small enough to mount in the trunk or cargo area
Options
Requirements
Hybrid
-
AL6000
- Minivans
- SUVs
- Vans
-
Lifting Capacity:350 lb
-
Accommodates:Power wheelchairs
Scooters -
Installed weight:160 lb
- Carries virtually all standard power chairs and scooters
- Allows continued use of second row seating; no drilling required in most vehicles
- Remote hand control
Options
Requirements
-
AL690
- Minivans
-
Lifting Capacity:275 lb
-
Accommodates:Power wheelchairs, Manual Wheelchairs, Scooters
-
Installed Weight:186 lb
- Carries most standard power chairs and shorter scooters
- Weatherproof, remote hand control (wireless option available)
- No drilling required in most vehicles; connects to existing 2nd row seat hardware
Options
Requirements
No match found
Best Match was not able to find any lifts that match your answers.
Dimension Information
For advanced users, chair and vehicle dimension information is available below.
Vehicle Dimension Information
| Dimension Name | Algebraic | Value |
|---|---|---|
| Auto Type | ||
| Passenger Side Door Width | DW1 | |
| Driver Side Door Width | DW2 | |
| Door Height | DWH | |
| Height | H | |
| Height (Bumper) | HB | |
| Height (Cub) | HC | |
| Height (Truck) | HT | |
| Height (Truck Bed) | HTB | |
| Height of Vehicle | HV | |
| Height of Well | HW | |
| Inset | I | |
| Inset 2 | II | |
| L1 | L1 | |
| L2 | L2 | |
| Length of Well | LW | |
| Offset | O | |

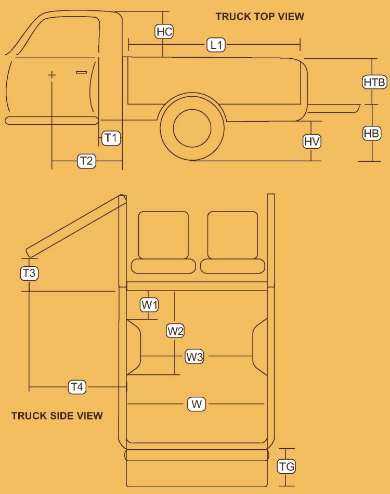

| Truck Dim 1 | T1 | |
| Truck Dim 2 | T2 | |
| Truck Dim 3 | T3 | |
| Truck Dim 4 | T4 | |
| Tailgate | TG | |
| Width | W | |
| Distance to Front of Well | W1 | |
| Distance to Rear of Well | W2 | |
| Distance between Wells | W3 | |
| Width of Trunk Well | WW | |

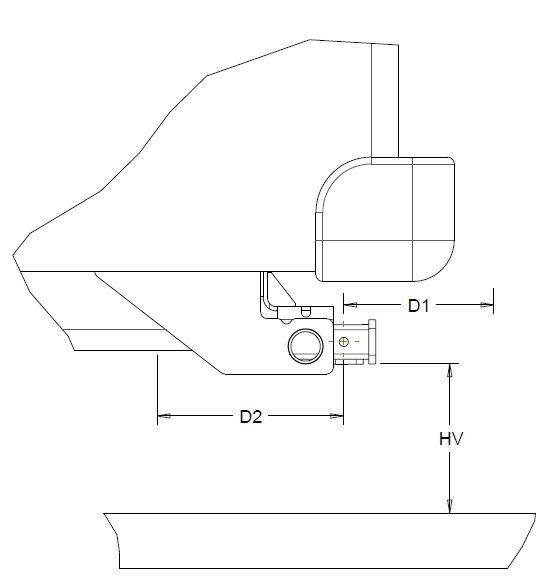

| D1 | D1 | |
| Class 1 Hitch Tongue Weight | ||
| Class 2 Hitch Tongue Weight | ||
| Class 3 Hitch Tongue Weight | ||
| Class 5 Hitch Tongue Weight | ||
| Has Tail Gate | ||
| Has Lift Gate | ||
| Has Barn Doors |

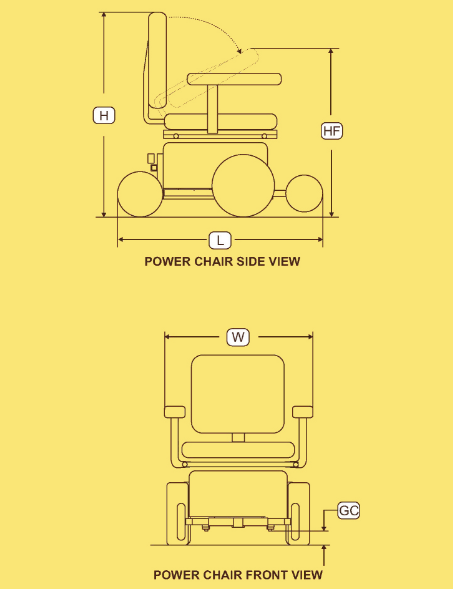

Chair Information
| Dimension Name | Algebraic | Value |
|---|---|---|
| Chair Type | ||
| Ground Clearance | GC | |
| Height | H | |
| Height with Seat Folded | HF | |
| Length | L | |
| Width | W | |
| Weight | WEIGHT |
Lift
Select a lift model
Chair/Scooter Information
Select a device make and model
Vehicle (Optional)
Select a vehicle make
Step 3 - Find Compatible Vehicles
Click "Find Vehicles" button below to search for compatible lifts. Your results will appear below.
No Results
Sorry, there are no compatible vehicle results for this combination. Please try a different combination.
Loading compatible vehicles
Calculator not working? Get Support here
