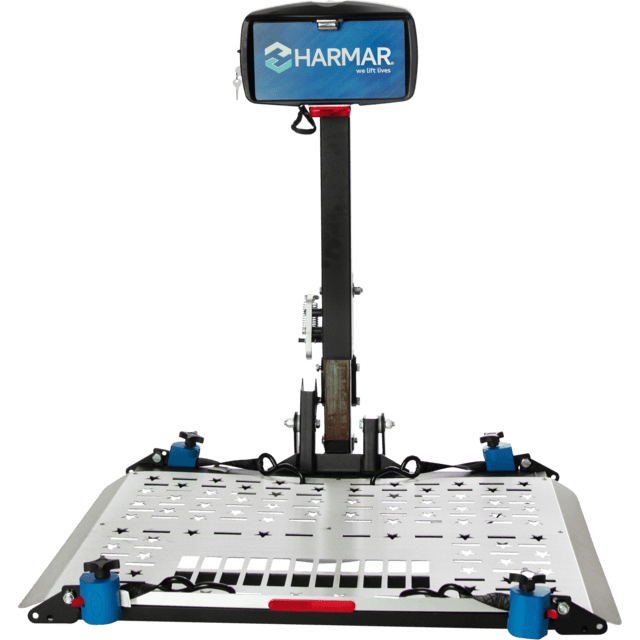

Harmar vehicle lift platform with a sturdy frame and a control box attached to a vertical post.

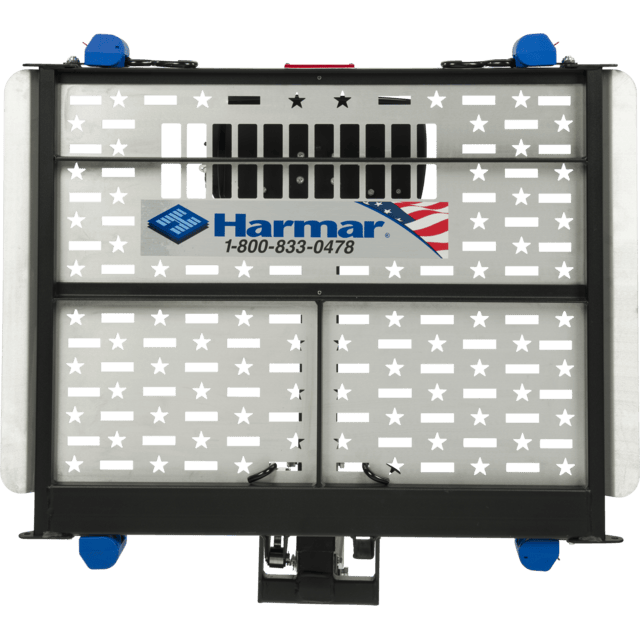

Metal platform with star patterns, Harmar logo, and contact number.

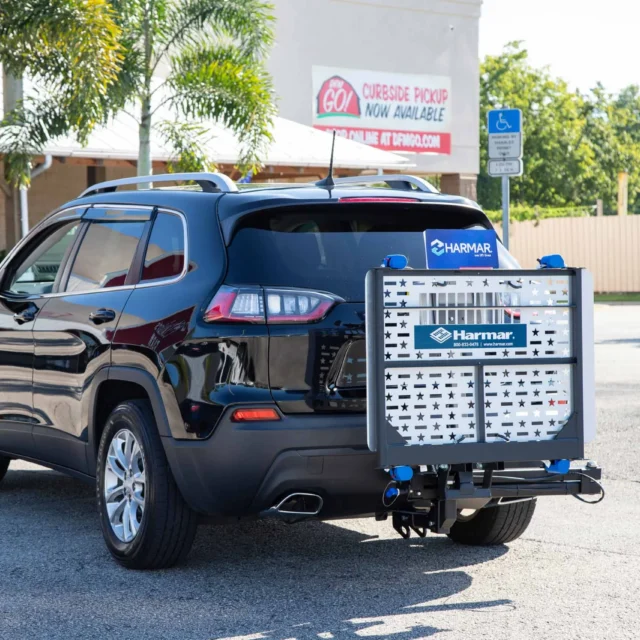

Black SUV parked in a lot with a Hamar lift attached to the rear, near a store with a visible curbside pickup sign.
Harmar vehicle lift platform with a sturdy frame and a control box attached to a vertical post.
Metal platform with star patterns, Harmar logo, and contact number.
Black SUV parked in a lot with a Hamar lift attached to the rear, near a store with a visible curbside pickup sign.
Vehicle Lifts Hitch-Mounted Lifts

AL500/AL500HD Universal Powerchair Hitch-Mount Lift

Swing-away option available! Please confirm your car’s compatibility with your Harmar dealer.

Do you need more power to transport your mobility device? The AL500 and AL500HD are designed to carry virtually all powerchairs without any modifications to your chair during travel.

  • Optimal for virtually any powerchair up to 350 lbs or 400 lbs (for HD).
  • Compatible with minivans, SUVs, trucks, and vans.
  • This lift series is complete with fully powered lifting and folding.

Assembled in the USA

Dealers in All 50 States

Live Support

  • Carries virtually all powerchairs
  • Four self-tensioning Q’Straint retractors
  • Stars-N-Stripes aluminum deck
  • No powerchair modifications
  • License plate mount
  • MultiView backup camera and swing-away option available

Lifting CapacityAL500: 350 lb
AL500HD: 400 lb
AccommodatesPower wheelchairs
Installed WeightAL500: 75 lb
AL500HD: 77 lb
Platform Size26″ x 39″
Hitch ClassAL500: II or greater
AL500HD: III or greater
PoweredFully powered
Included
  • AL500: AL123 class III hitch adapter
  • AL500HD: AL123HD class III heavy duty hitch adapter
  • AL107 hitch post
  • License plate mount
Securement4 self-tensioning Q’Straint retractors
Available Options
  • Batter pack
  • Cover
  • License plate riser
  • MultiView backup camera
  • Swing-away

AL500 in Use

Two women in a parking lot; one in a wheelchair holding flowers, the other next to a vehicle mounted with a wheelchair lift. Shopping bag on ground.
Two women are in a parking lot. One woman is in a wheelchair holding flowers, and the other is standing beside an open vehicle equipped with a wheelchair lift.

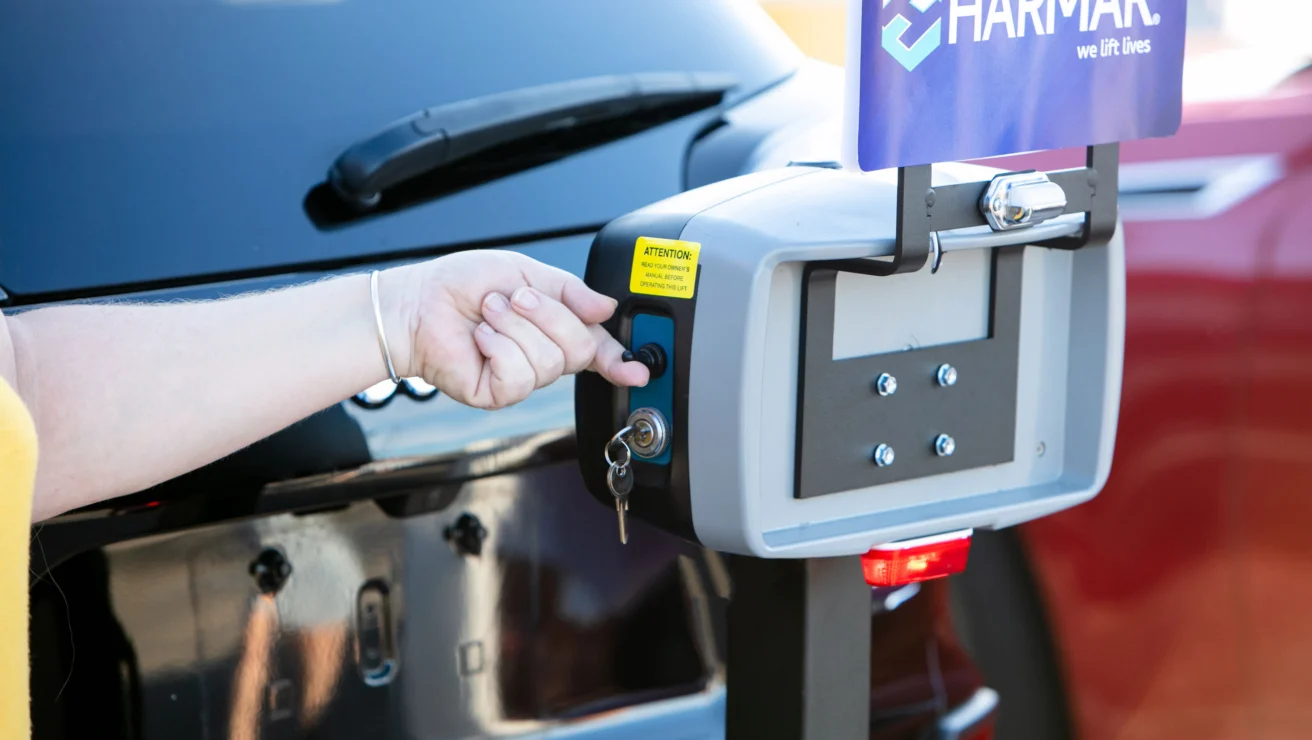

A person operates a key control system on a vehicle lift by Harmar, with a sign above and keys inserted into the lock.
Two women in a parking lot. One in a motorized wheelchair with flowers; the other stands by an SUV using a Harmar lift.
A person stands beside a portable car lift platform on a paved surface.

Features

MultiView: The Backup Camera
That Won’t be Blocked!

Busy parking lots, bustling neighborhoods, and narrow driveways can be overwhelming when backing up. Add a hitch lift and mobility device to the rear of your car and it can be enough to make you break into a cold sweat. The camera, installed on the lift’s platform, is designed with two lenses fixed in two positions to automatically provide a clear view when the platform is stowed or deployed with a mobility device.

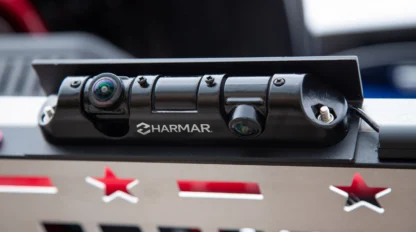

Close-up of a Harmar branded device mounted on a metal surface with red star-shaped cutouts. It features two lenses and is connected by wires.
View from inside a car showing two people in front seats, dashboard display with a rear-view camera image, and a house with a parked vehicle in the driveway.

Frequently Asked Questions

Wondering what lift would work best for you? Here are a few key things to keep in mind as you make your decision. If you have other questions that aren’t answered here, please don’t hesitate to reach out to us.

Harmar products are available through any of Harmar’s authorized dealers located throughout the United States and around the world. It is imperative that you use a qualified Harmar dealer since they are professionals who are trained to install and service Harmar products for safe use. To find the Harmar Authorized Dealer in your area, just use our Dealer Locator.

Hitch-mounted lifts are rated as “easier” lifts to use because the lift does the work for you. Exit your mobility device, guide it onto the lift platform, and secure your mobility device to the lift. When ready, the lift can be operated with a switch, where it will raise your mobility device for travel. Because these lifts transport your scooter, powerchair, or manual wheelchair on the outer rear of your vehicle, your cargo space is untouched, allowing you to maintain full use of your vehicle’s interior.

Hybrid lifts are a mix of hitch and hoist lifts. Like hitch lifts, you must get off your scooter or powerchair and guide it onto the platform, then secure it with either four cam buckles or the hold-down bar. Then, much like hoist lifts, use the remote control to lift your powerchair or scooter into the rear cargo area in your vehicle. Because the hybrid lift is installed inside your vehicle, you’re able to maintain use of your backup camera and save space if parking in a garage.

Hoist lifts help transport your mobility device by hooking onto your scooter, powerchair, or manual wheelchair, and hoisting it into your vehicle’s cargo area. Because the hoist lift is installed inside your vehicle, you’re able to maintain use of your backup camera and save space if parking in a garage.


Harmar’s innovative Compatibility Calculator is the best in the industry. However, the Compatibility Calculator is only meant as a guide and will often return several results. Harmar’s authorized dealers will be able to discuss the various distinctions and confirm the proper lift for your specific need. Use our locator to find a dealer near you or contact us with any questions.

This depends on your vehicle and the type of lift that best fits your needs. Hitch-mounted lifts require a hitch to be added to your vehicle (if you don’t already have one installed). Hybrid and hoist lifts generally require little-to-no modifications, but may call for some drilling to the cargo area or truck bed floor in order to fasten/bolt the lifts into place.

Vehicle lifts get power from the vehicle’s battery. The lift is connected to the vehicle’s electrical system, allowing it to operate via controls inside or near the lift. Some lifts can also be powered by an independent battery system specifically for the lift, ensuring it remains functional even if the vehicle’s main battery is low or off.

All Harmar products are designed and tested to operate flawlessly for years of trouble-free use with very little maintenance. Please refer to the Owner’s Manual for specific product maintenance schedules. We also recommend scheduling regular professional inspections with your Harmar dealer to identify and address any potential issues, ensuring the lift stays safe and reliable!

Consult With Us

Consult with a trusted Harmar representative to learn more about mobility and access solutions to ensure you find the right fit.
